Catch2 HTML Reporter

A simple Reporter implementation that generates HTML reports for test suites written using Catch2.

Output Files

The reporter produces the following output files:

  • test-results/index.html - A simple index file that lists the individual test results files, and the summary and results files.

  • test-results/summary.html - Test result summary in tabular format.

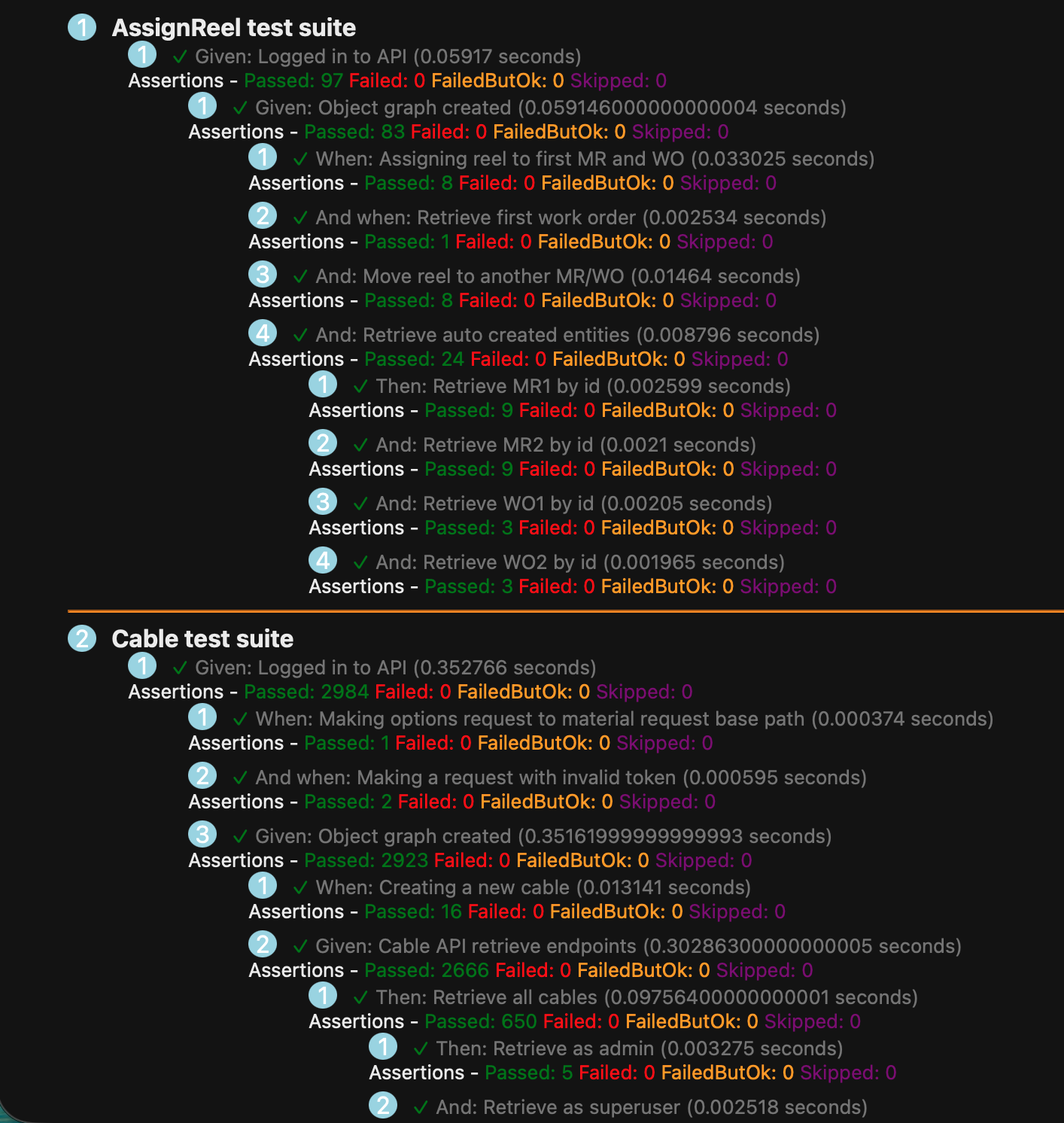

  • test-results/results.html - The full aggregated results of the test suite.

  • test-results/<TestName>.html - Report with results from executing each test case.

Implementation

The reporter extends the Catch::StreamingReporterBase class. I chose to extend the Catch::StreamingReporterBase class instead of Catch::CumulativeReporterBase to also produce console output when the test suite is run. The actual HTML report generation is done only after the test suite has completed.

testRunStarting

void testRunStarting( const Catch::TestRunInfo& info ) override { StreamingReporterBase::testRunStarting( info ); suites.reserve( 16 ); seed = Catch::getSeed(); start = std::chrono::high_resolution_clock::now(); startTime = std::chrono::system_clock::now(); }

Populate the seed for the run (we do not use it at present), as well as start the clock used to measure execution time.

testCaseStarting

void testCaseStarting( const Catch::TestCaseInfo& info ) override { StreamingReporterBase::testCaseStarting( info ); currentSection = nullptr; suites.push_back( phr::create<phr::Suite>( info.name ) ); std::println( "\033[1;34m{}\033[0m", info.name ); }

Add the suite to the vector of suites for this run. Print the test case name to the console.

sectionStarting

void sectionStarting( const Catch::SectionInfo& info )

Add the section to the suite if not already added. Keep a pointer to the section. This is used to track the nested hierarchy of sections in a test case.

assertionEnded

void assertionEnded( const Catch::AssertionStats& stats ) override { if ( !stats.assertionResult.isOk() ) { std::println( "\033[1;31mAssertion '{}' failed: {} at {}:{}\033[0m", stats.assertionResult.getExpression(), stats.assertionResult.getMessage().data(), stats.assertionResult.getSourceInfo().file, stats.assertionResult.getSourceInfo().line ); } }

This over-ride is used to print assertion failures to the console. This level of detail is not appropriate in the HTML reports, and is not added to the output files.

sectionEnded

void sectionEnded( const Catch::SectionStats& stats )

Update the assertion statistics for the tracked section. Output the assertion statistics to the console.

testCaseEnded

void testCaseEnded( const Catch::TestCaseStats& stats )

Accumulate the assertion statistics for the section to the suite. Print out the assertion statistics to the console.

testRunEnded

void testRunEnded( const Catch::TestRunStats& stats )

Output the test run statistics to the console. Generate the HTML report.

Code

You can view the full source code for the reporter.

A simple structure used to represent a test suite section.

struct Section { Catch::Counts assertions; std::vector<Section> sections; Section* parent{ nullptr }; std::string name; double duration{ 0.0 }; bool printed{ false }; };

A simple structure used to represent a test suite.

struct Suite { Catch::Counts assertions; std::vector<Section> sections; std::string name; decltype(std::chrono::high_resolution_clock::now()) start{ std::chrono::high_resolution_clock::now() }; decltype(std::chrono::high_resolution_clock::now()) end; [[nodiscard]] std::string filename() const { return std::format( "{}.html", boost::algorithm::replace_all_copy( name, " ", "-" ) ); } [[nodiscard]] std::chrono::nanoseconds duration() const { return end - start; } };

Over-ridden implementation of the testRunStarting method.

void testRunStarting( const Catch::TestRunInfo& info ) override { StreamingReporterBase::testRunStarting( info ); suites.reserve( 16 ); seed = Catch::getSeed(); start = std::chrono::high_resolution_clock::now(); startTime = std::chrono::system_clock::now(); }

Over-ridden implementation of the testCaseStarting method.

void testCaseStarting( const Catch::TestCaseInfo& info ) override { StreamingReporterBase::testCaseStarting( info ); currentSection = nullptr; suites.push_back( phr::create<phr::Suite>( info.name ) ); std::println( "\033[1;34m{}\033[0m", info.name ); }

Over-ridden implementation of the sectionStarting method.

void sectionStarting( const Catch::SectionInfo& info ) override { StreamingReporterBase::sectionStarting( info ); auto test = phr::create<phr::Section>( info.name ); test.parent = currentSection; if ( test.name == suites.back().name ) return; const auto add = [this]( std::vector<phr::Section>& sections, phr::Section&& sec ) { if ( auto iter = ranges::find_if( sections, [&sec]( const auto& tc ) { return tc.name == sec.name; } ); iter == ranges::end( sections ) ) { sections.push_back( std::move( sec ) ); currentSection = &sections.back(); } else { currentSection = iter.base(); } }; add( currentSection ? currentSection->sections : suites.back().sections, std::move( test ) ); }

Over-ridden implementation of the sectionEnded method.

void sectionEnded( const Catch::SectionStats& stats ) override { StreamingReporterBase::sectionEnded( stats ); if ( !currentSection ) return; if ( const auto sec = phr::create<phr::Section>( stats.sectionInfo.name ); sec.name == suites.back().name ) return; currentSection->assertions.passed += stats.assertions.passed; currentSection->assertions.failed += stats.assertions.failed; currentSection->assertions.failedButOk += stats.assertions.failedButOk; currentSection->assertions.skipped += stats.assertions.skipped; currentSection->duration += stats.durationInSeconds; const auto indent = []( const phr::Section& sec ) -> std::string { auto indent = std::string{}; indent.reserve( 16 ); indent.append( 2, ' ' ); auto root = sec.parent; while ( root ) { indent.append( 2, ' ' ); root = root->parent; } return indent; }; const auto style = []( const phr::Section& sec ) -> std::string { if ( sec.assertions.allPassed() ) return "\033[36m"; return "\033[33m"; }; const auto symbol = [] ( const phr::Section& sec ) -> std::string { return sec.assertions.allPassed() ? "✅" : "❌"; }; auto messages = std::vector<std::string>{}; messages.reserve( 8 ); if ( !currentSection->printed ) { messages.push_back( std::format( "{}{}{} {}\033[0m", indent( *currentSection ), style( *currentSection ), symbol( *currentSection ), currentSection->name ) ); currentSection->printed = true; } auto root = currentSection->parent; while ( root && !root->printed ) { messages.push_back( std::format( "{}{}{} {}", indent( *root ), style( *root ), symbol( *root ), root->name ) ); root->printed = true; root = root->parent; } for ( const auto& msg : messages | ranges::views::reverse ) std::println( "{}", msg ); currentSection = currentSection->parent; }

Over-ridden implementation of the testCaseEnded method.

void testCaseEnded( const Catch::TestCaseStats& stats ) override { currentSection = nullptr; if ( !stats.testInfo ) return; auto& suite = suites.back(); suite.assertions.passed += stats.totals.assertions.passed; suite.assertions.failed += stats.totals.assertions.failed; suite.assertions.failedButOk += stats.totals.assertions.failedButOk; suite.assertions.skipped += stats.totals.assertions.skipped; suite.end = std::chrono::high_resolution_clock::now(); std::println( "\033[1;34m{} \033[0m\033[1m({} seconds)\033[0m", suite.name, std::chrono::duration_cast<std::chrono::duration<double>>( suite.duration() ).count() ); std::println( "\033[1;34m Assertions - \033[0m\033[1;32mPassed: {}; \033[0m\033[1;31mFailed: {}, \033[0m\033[1;33mFailedOk: {}, \033[0m\033[1;35mSkipped: {}, \033[0m\033[1mTotal: {}\033[0m", suite.assertions.passed, suite.assertions.failed, suite.assertions.failedButOk, suite.assertions.skipped, suite.assertions.total() ); }

Over-ridden implementation of the testRunEnded method.

void testRunEnded( const Catch::TestRunStats& stats ) override { StreamingReporterBase::testRunEnded( stats ); std::println( "\033[1;34m{}\033[0m", stats.runInfo.name.data() ); std::println( "\033[1;34m Test Cases - \033[0m\033[1;32mPassed: {}; \033[0m\033[1;31mFailed: {}, \033[0m\033[1;33mFailedOk: {}, \033[0m\033[1;35mSkipped: {}, \033[0m\033[1mTotal: {}\033[0m", stats.totals.testCases.passed, stats.totals.testCases.failed, stats.totals.testCases.failedButOk, stats.totals.testCases.skipped, stats.totals.testCases.total() ); std::println( "\033[1;34m Assertions - \033[0m\033[1;32mPassed: {}; \033[0m\033[1;31mFailed: {}, \033[0m\033[1;33mFailedOk: {}, \033[0m\033[1;35mSkipped: {}; \033[0m\033[1mTotal: {}\033[0m", stats.totals.assertions.passed, stats.totals.assertions.failed, stats.totals.assertions.failedButOk, stats.totals.assertions.skipped, stats.totals.assertions.total() ); std::println( "\033[1;34m Duration - \033[0m\033[1m{} \033[0m\033[1;34mseconds\033[0m", std::chrono::duration_cast<std::chrono::duration<double>>( std::chrono::high_resolution_clock::now() - start ).count() ); phr::generate( suites, "test-results", startTime ); }

Example Output

The following screen captures show the output HTML files generated by the reporter for one of my test suites.

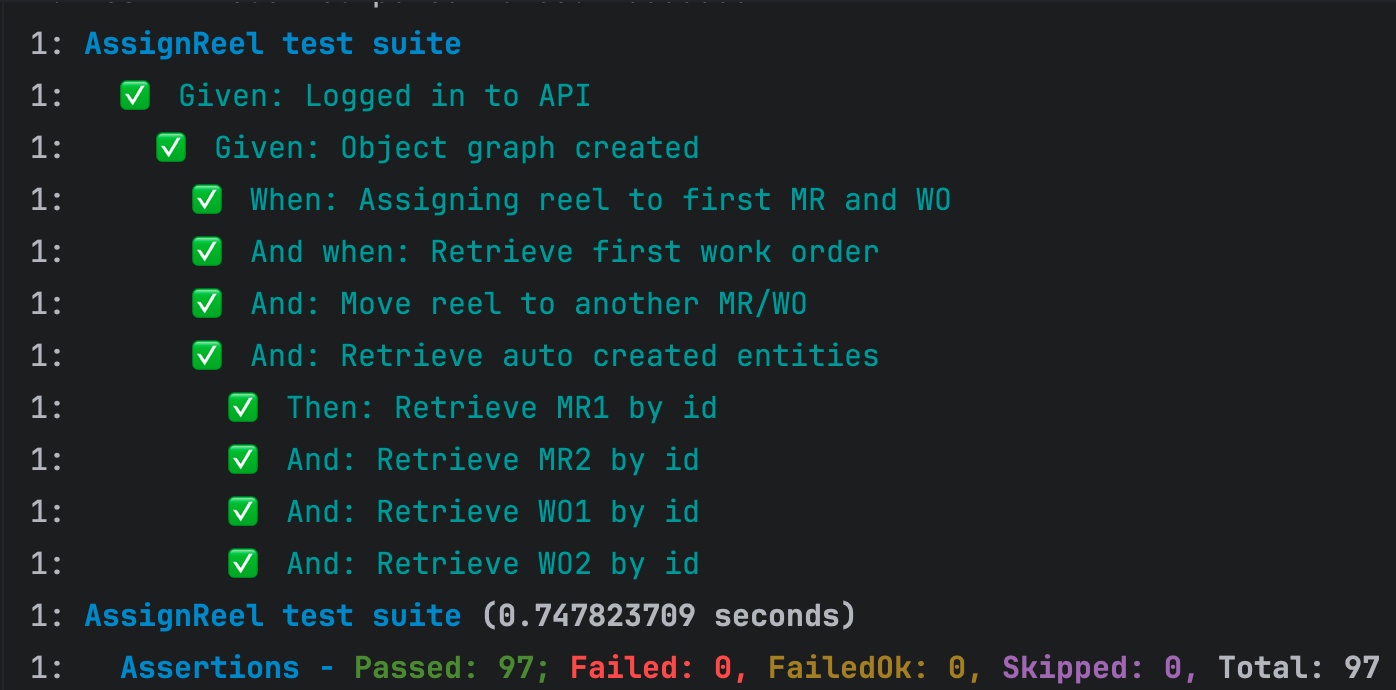

Console output begin

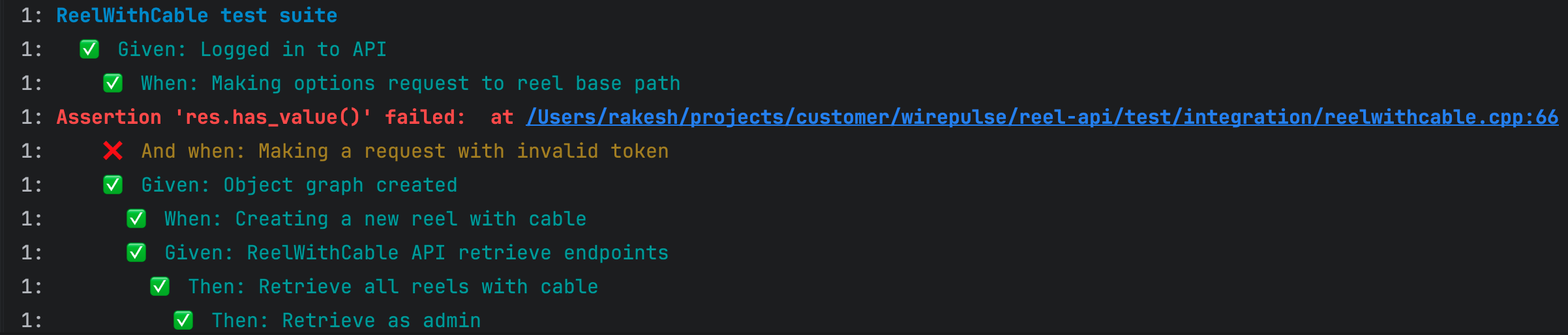

Console output failure

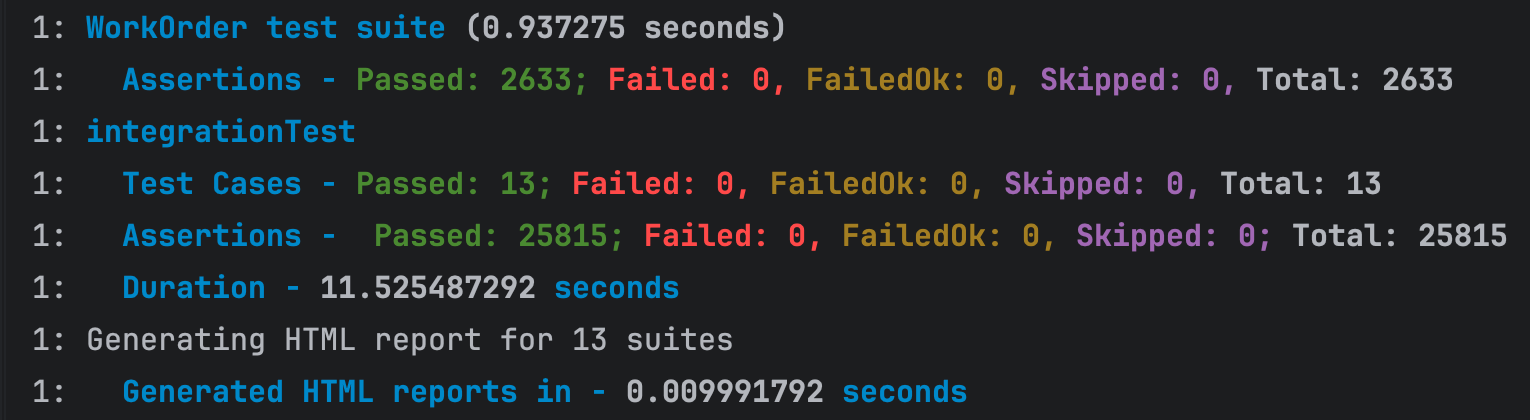

Console output begin

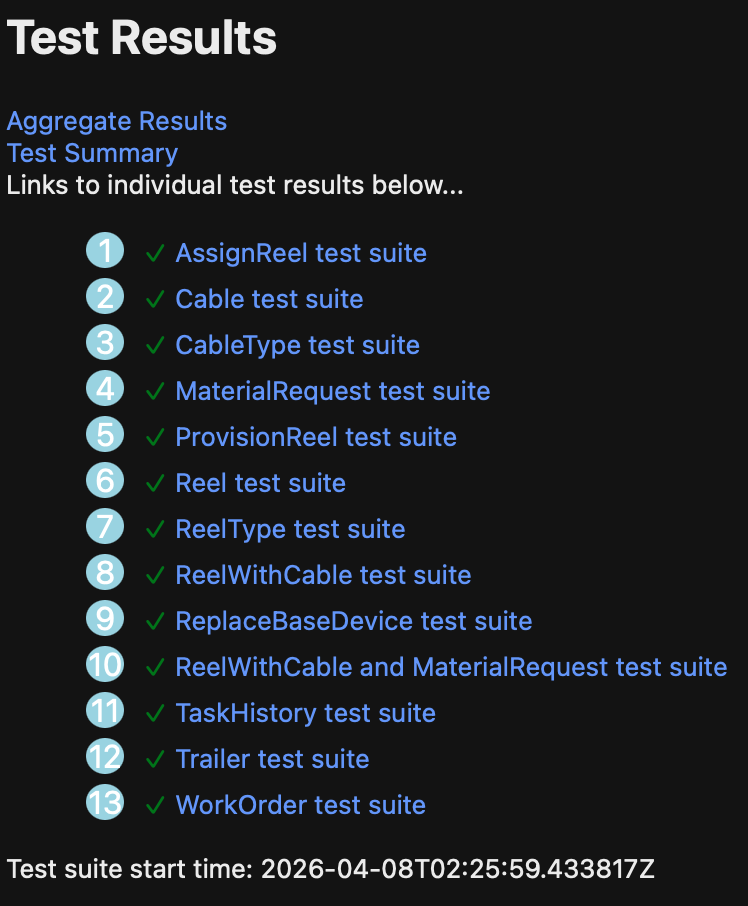

Index file

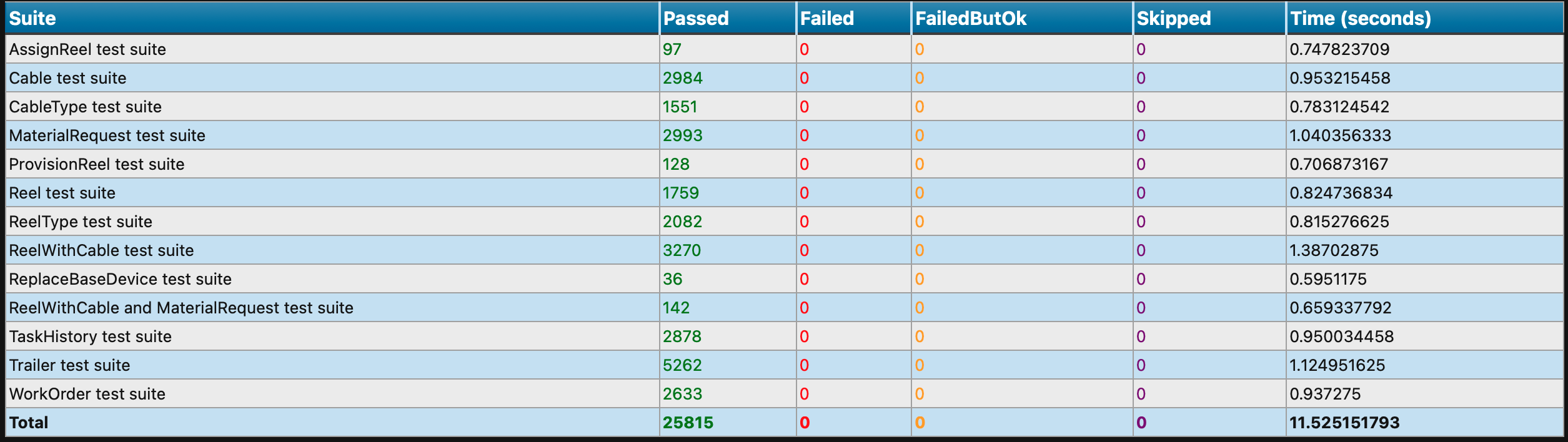

Test Summary file

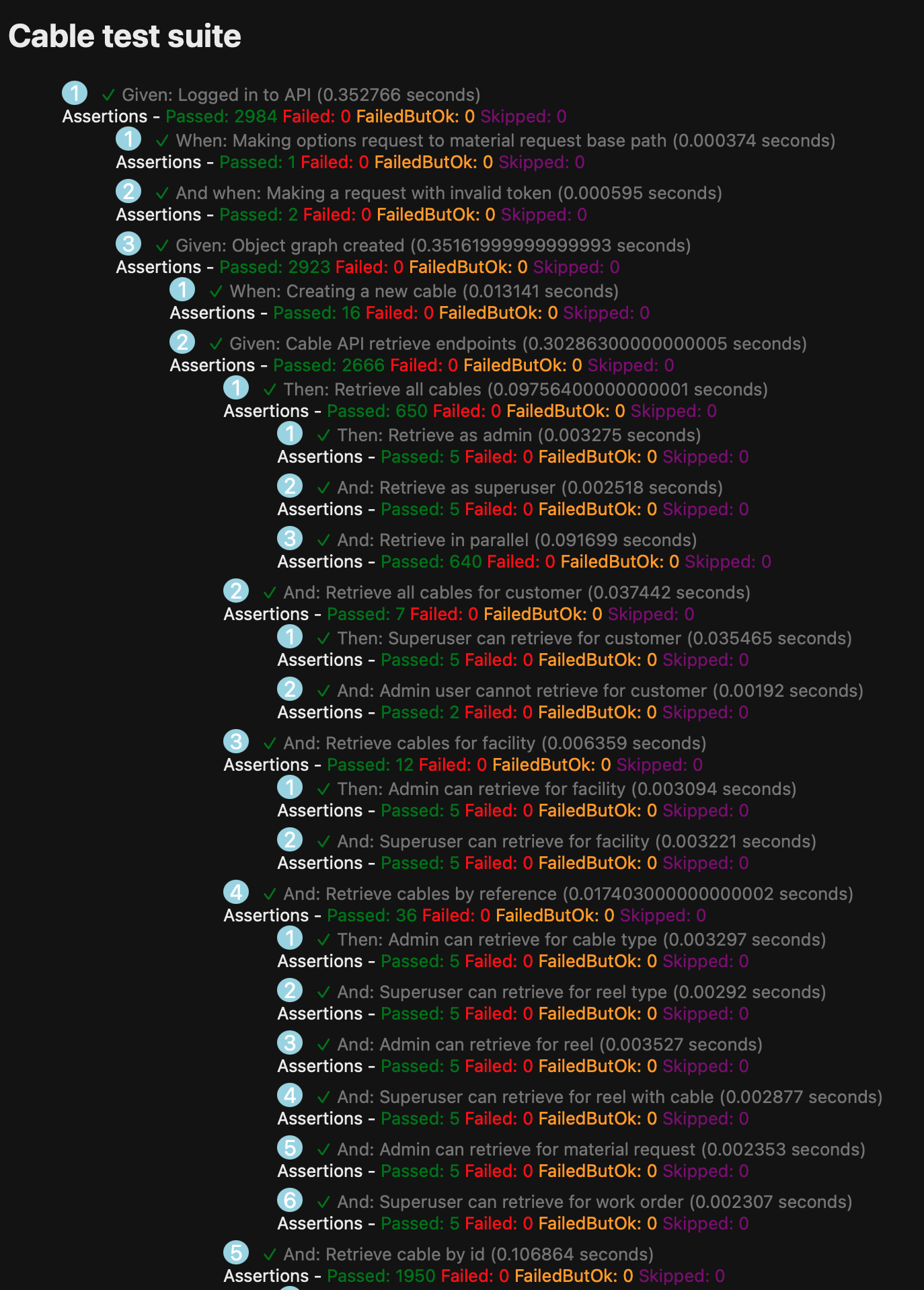

Test Case file
Test Case file
