Goblin HTML Reporter
A simple Reporter implementation that generates HTML reports for BDD test suites written using goblin.
Options
The reporter supports the following options specified as command line arguments:
report.file- The primary report output file. This file contains the full aggregated results of all tests that were executed. Default value if not specified is$PWD/test-results/index.htmlreport.preserve- A flag used to indicate that report output should be preserved. If this flag is specified, a directory hierarchy will be created per test run under which all report files will be generated. The top level directory will still be the parent directory of the report file specified (or default location). Under this parent directory, two additional levels of directories will be created:day- A directory with the current day in ISO 8601 format -yyyy-MM-ddtime- Created under the day directory with current time -hhmmss
Output Files
The reporter produces the following output files:
<directory>/index.html- A simple index file that just lists the individual test results files, and the summary and results files.<directory>/summary.html- Test result summary in tabular format.<directory>/results.html- The full aggregated results of the test suite. This is the file that is specified as command line argument to control the output directory if the default is not desired.<directory>/<TestName>.html- Report with results from executing the test.
Running
The following simple suite shows how to setup and use the html reporter. It just requires two additional lines of code in the test file (comments Line 1 and Line 2). The rest is standard goblin BDD test suite.
You can specify the main output file (default $PWD/test-results/index.html) by specifying a flag.
go test -report.file=/tmp/test.html
or to specify the target output directory and desired report file name as well as to preserve all report files per run
go test -report.file=/tmp/test.html -report.preserve
or to preserve all report files per run, but use the default output directory
go test -report.preserve
Consolidated test output will be written to the specified (or default) html file. In addition, the reporter creates a Test<Xxx>.html for each test (TestXxx) under the parent directory (default $PWD/test-results) as well as a summary.html file.
Sample Test
package main
import (
"testing"
"github.com/franela/goblin"
)
func TestAuth(t *testing.T) {
g := goblin.Goblin(t)
GetReporter().RegisterTest(t.Name()) // Line 1
g.SetReporter(goblin.Reporter(GetReporter())) // Line 2
var Describe = g.Describe
var It = g.It
var Assert = g.Assert
Describe("Login and logout from API", func() {
var token string
It("Login with username/password credentials", func() {
response, tk, errs := login()
Assert(errs == nil).IsTrue("Endpoint returned errors")
Assert(response.StatusCode).Equal(200)
Assert(len(tk) > 0).IsTrue("Endpoint did not return token")
token = tk
})
It("Logout the JWT Token", func() {
response, errs := logout(token)
Assert(errs == nil).IsTrue("Endpoint returned errors")
Assert(response.StatusCode).Equal(200)
})
It("Cannot use API with deleted token", func() {
response, _, errs := customerByCode(token, "test")
Assert(errs == nil).IsTrue("Endpoint returned errors")
Assert(response.StatusCode).Equal(403)
})
It("Cannot logout invalidated JWT Token", func() {
response, errs := logout(token)
Assert(errs == nil).IsTrue("Endpoint returned errors")
Assert(response.StatusCode != 200).IsTrue("Unexpected response code when logging out invalidated token")
})
})
}

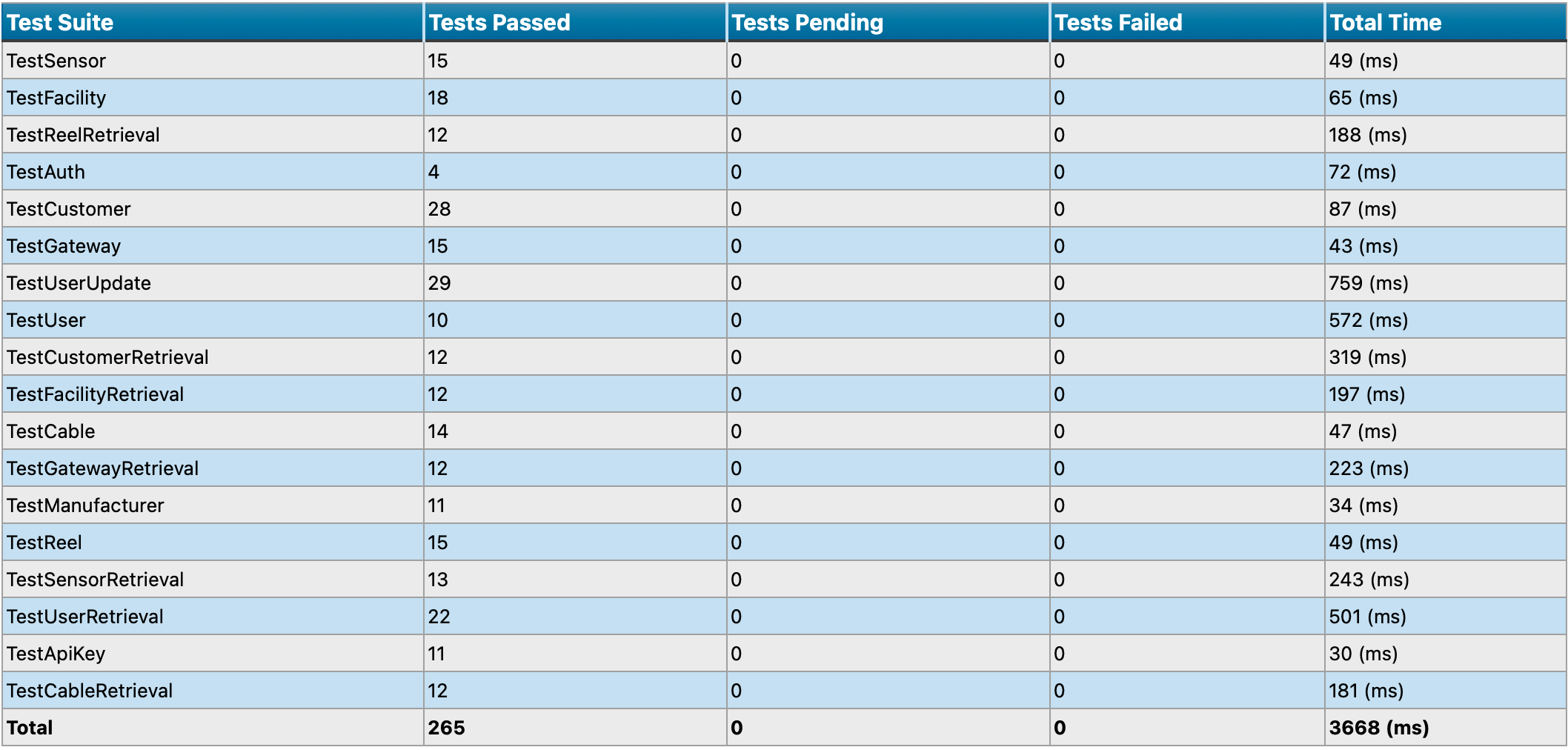

Sample summary report

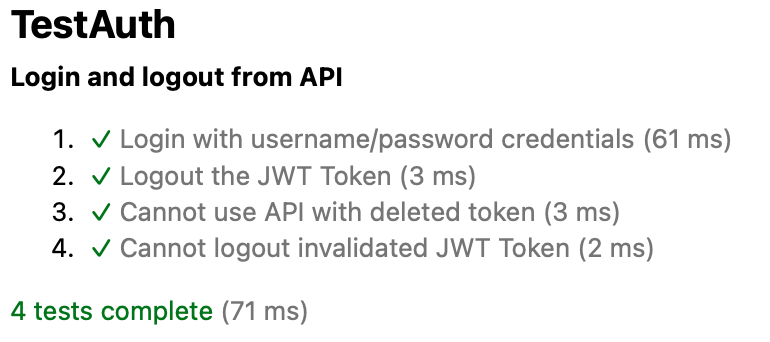

Sample individual test report
Using default location, this file is generated as $PWD/test-results/TestAuth.html
Reporter Implementation
package main
import (
"flag"
"fmt"
"io"
"log"
"os"
"path/filepath"
"strings"
"sync"
"time"
"github.com/franela/goblin"
)
type ReportStats struct {
failed, passed, pending, excluded int
executionTime, totalExecutionTime time.Duration
describes []string
failures []*goblin.Failure
file *os.File
}
type StatsMap map[string]*ReportStats
type HtmlReporter struct {
aggregateTestsPassed int
aggregateExecutionTime time.Duration
reporter goblin.Reporter
file *os.File
writer io.Writer
current string
tests StatsMap
}
func GetReporter() *HtmlReporter {
ronce.Do(func() {
flag.Parse()
r, err := newHtmlReporter(*outfile)
if err != nil { panic(err) }
reporter = r
})
return reporter
}
func newHtmlReporter(fileName string) (*HtmlReporter, error) {
fn := fileName
dir := filepath.Dir(fn)
err := os.MkdirAll(dir, 0744)
if err != nil {
return nil, fmt.Errorf("cannot make directories for new logfile: %s", err)
}
if *saveoutput {
dir := filepath.Dir(fn)
t := time.Now()
day := fmt.Sprintf("%d-%02d-%02d", t.Year(), t.Month(), t.Day())
tm := fmt.Sprintf("%02d%02d%02d", t.Hour(), t.Minute(), t.Second())
dest := filepath.Join(dir, day, tm)
err := os.MkdirAll(dest, 0744)
if err != nil {
return nil, fmt.Errorf("cannot make directories for new logfile: %s", err)
}
fn = filepath.Base(fn)
fn = filepath.Join(dest, fn)
}
mode := os.FileMode(0644)
f, err := os.OpenFile(fn, os.O_CREATE|os.O_WRONLY|os.O_TRUNC, mode)
if err != nil {
return nil, fmt.Errorf("cannot open new test report file: %s", err)
}
log.Println("Writing test html results to file", fn)
fancy := goblin.TerminalFancier{}
rep := goblin.DetailedReporter{}
rep.SetTextFancier(goblin.TextFancier(&fancy))
if _, err := fmt.Fprint(f, header); err != nil {
log.Println("Error writing html header to file", f, "\n", err)
}
return &HtmlReporter{reporter: goblin.Reporter(&rep), file: f}, nil
}
func (r *HtmlReporter) SetReporter(rep goblin.Reporter) {
r.reporter = rep
}
func (r *HtmlReporter) newReportStats(name string) *ReportStats {
dir := filepath.Dir(r.file.Name())
of := fmt.Sprintf("%v/%v.html", dir, name)
mode := os.FileMode(0644)
f, err := os.OpenFile(of, os.O_CREATE|os.O_WRONLY|os.O_TRUNC, mode)
if err != nil {
panic(fmt.Errorf("cannot open new test report file: %s", err))
}
h := strings.Replace(header, "Test Report", fmt.Sprintf("%v Report", name), 1)
if _, err := fmt.Fprint(f, h); err != nil {
log.Println("Error writing html header to file", f.Name(), "\n", err)
}
r.writer = io.MultiWriter(f, r.file)
return &ReportStats{file: f}
}
func (r *HtmlReporter) RegisterTest(name string) {
if len(r.current) > 0 {
if err := r.tests[r.current].file.Close(); err != nil {
log.Println("Error closing test file", r.tests[r.current].file.Name(), "\n", err)
}
}
r.current = name
if r.tests == nil { r.tests = StatsMap{} }
r.tests[name] = r.newReportStats(name)
if _, err := fmt.Fprintf(r.writer, "<h2>%v</h2>\n", name); err != nil {
log.Println("Error registering test", name, "to file", r.file.Name(), "\n", err)
}
}
func (r *HtmlReporter) Failure(failure *goblin.Failure) {
r.reporter.Failure(failure)
s := r.tests[r.current]
s.failures = append(s.failures, failure)
}
func (r *HtmlReporter) BeginDescribe(name string) {
r.reporter.BeginDescribe(name)
r.tests[r.current].describes = append(r.tests[r.current].describes, name)
l := len(r.tests[r.current].describes)
msg := fmt.Sprintf("<li><strong>%v</strong>\n<ol>\n", name)
if l == 1 { msg = fmt.Sprintf("<strong>%v</strong>\n<ol>\n", name) }
if _, err := fmt.Fprint(r.writer, msg); err != nil {
log.Println("Error writing Describe", name, "at level", l, "to file", r.file.Name(), "\n", err)
}
}
func (r *HtmlReporter) EndDescribe() {
r.reporter.EndDescribe()
l := len(r.tests[r.current].describes)
msg := "</ol>\n</li>\n"
if l == 1 { msg = "</ol>\n" }
if _, err := fmt.Fprint(r.writer, msg); err != nil {
log.Println("Error writing EndDescribe at level", l, "to file", r.file.Name(), "\n", err)
}
r.tests[r.current].describes = r.tests[r.current].describes[:l-1]
}
func (r *HtmlReporter) ItTook(duration time.Duration) {
r.reporter.ItTook(duration)
r.tests[r.current].executionTime = duration
r.tests[r.current].totalExecutionTime += duration
r.aggregateExecutionTime += duration
}
func (r *HtmlReporter) ItFailed(name string) {
r.reporter.ItFailed(name)
r.tests[r.current].failed++
if _, err := fmt.Fprintf(r.writer, "<li><span style='color: red'>✗ %d) %v</span></li>\n", r.tests[r.current].failed, name); err != nil {
log.Println("Error writing ItFailed", name, "at level", len(r.tests[r.current].describes), "to file", r.file.Name(), "\n", err)
}
}
func (r *HtmlReporter) ItPassed(name string) {
r.reporter.ItPassed(name)
r.tests[r.current].passed++
if _, err := fmt.Fprintf(r.writer, "<li><span style='color: green'>✓</span> <span style='color: gray'>%v (%d ms)</span></li>\n", name, r.tests[r.current].executionTime/time.Millisecond); err != nil {
log.Println("Error writing ItPassed", name, "at level", len(r.tests[r.current].describes), "to file", r.file.Name(), "\n", err)
}
}
func (r *HtmlReporter) ItIsPending(name string) {
r.reporter.ItIsPending(name)
r.tests[r.current].pending++
if _, err := fmt.Fprintf(r.writer, "<li><span style='color: cyan'>- %v</span></li>\n", name); err != nil {
log.Println("Error writing ItIsPending", name, "at level", len(r.tests[r.current].describes), "to file", r.file.Name(), "\n", err)
}
}
func (r *HtmlReporter) ItIsExcluded(name string) {
r.reporter.ItIsExcluded(name)
r.tests[r.current].excluded++
if _, err := fmt.Fprintf(r.writer, "<li><span style='color: yellow'>- %v</span></li>\n", name); err != nil {
log.Println("Error writing ItIsExcluded", name, "at level", len(r.tests[r.current].describes), "to file", r.file.Name(), "\n", err)
}
}
func (r *HtmlReporter) Begin() {
r.reporter.Begin()
}
func (r *HtmlReporter) End() {
r.reporter.End()
r.aggregateTestsPassed += r.tests[r.current].passed
r.writeSummaries()
r.saveSummary()
r.saveIndex()
}
func (r *HtmlReporter) writeSummaries() {
comp := fmt.Sprintf("%d tests complete", r.tests[r.current].passed)
t := fmt.Sprintf("(%d ms)", r.tests[r.current].totalExecutionTime/time.Millisecond)
if _, err := fmt.Fprintf(r.writer, "<div><span style='color: green'>%v</span> <span style='color: gray'>%v</span></div>\n", comp, t); err != nil {
log.Println("Error writing tests complete to file", r.file.Name(), "\n", err)
}
if r.tests[r.current].pending > 0 {
pend := fmt.Sprintf("%d test(s) pending", r.tests[r.current].pending)
if _, err := fmt.Fprintf(r.writer, "<div style='color: cyan'>%v</div>\n", pend); err != nil {
log.Println("Error writing tests pending to file", r.file.Name(), "\n", err)
}
}
if r.tests[r.current].excluded > 0 {
excl := fmt.Sprintf("%d test(s) excluded", r.tests[r.current].excluded)
if _, err := fmt.Fprintf(r.writer, "<div style='color: yellow'>%v</div>\n", excl); err != nil {
log.Println("Error writing tests excluded to file", r.file.Name(), "\n", err)
}
}
if len(r.tests[r.current].failures) > 0 {
if _, err := fmt.Fprintf(r.writer, "<div style='color: red'>%d tests failed</div>\n", len(r.tests[r.current].failures)); err != nil {
log.Println("Error writing tests excluded to file", r.file.Name(), "\n", err)
}
}
if _, err := fmt.Fprint(r.writer, "<ol>\n"); err != nil {
log.Println("Error writing ol tag to file", r.file.Name(), "\n", err)
}
for i := range r.tests[r.current].failures {
if _, err := fmt.Fprintf(r.writer, "<li>%s:\n", r.tests[r.current].failures[i].TestName); err != nil {
log.Println("Error writing", r.tests[r.current].failures[i].TestName, "to file", r.file.Name(), "\n", err)
}
if _, err := fmt.Fprintf(r.writer, "<div style='color: red'>%s</div>\n", r.tests[r.current].failures[i].Message); err != nil {
log.Println("Error writing", r.tests[r.current].failures[i].Message, "to file", r.file.Name(), "\n", err)
}
for _, stackItem := range r.tests[r.current].failures[i].Stack {
if _, err := fmt.Fprintf(r.writer, "<div style='color: gray'> %s</div>\n", stackItem); err != nil {
log.Println("Error writing", stackItem, "to file", r.file.Name(), "\n", err)
}
}
if _, err := fmt.Fprint(r.writer, "</li>\n"); err != nil {
log.Println("Error writing ending li tag to file", r.file.Name(), "\n", err)
}
}
if _, err := fmt.Fprint(r.writer, "</ol>\n"); err != nil {
log.Println("Error writing ending ol tag to file", r.file.Name(), "\n", err)
}
comp = fmt.Sprintf("%d total tests complete", r.aggregateTestsPassed)
t = fmt.Sprintf("(%d ms)", r.aggregateExecutionTime/time.Millisecond)
if _, err := fmt.Fprintf(r.file, "<div><span style='color: green'>%v</span> <span style='color: gray'>%v</span></div>\n<hr/>\n", comp, t); err != nil {
log.Println("Error writing aggregate tests complete to file", r.file.Name(), "\n", err)
}
closeTags := "</body>\n</html>\n"
if _, err := fmt.Fprint(r.writer, closeTags); err != nil {
log.Println("Error closing html tags in file", r.tests[r.current].file.Name(), "\n", err)
}
if _, err := r.file.Seek(int64(-1 * len(closeTags)), 1); err != nil {
log.Println("Error rewinding closing html tags in file", r.file.Name(), "\n", err)
}
if err := r.file.Sync(); err != nil {
log.Println("Error syncing file", r.file.Name(), "\n", err)
}
}
func (r *HtmlReporter) saveSummary() {
dir := filepath.Dir(r.file.Name())
of := fmt.Sprintf("%v/summary.html", dir)
mode := os.FileMode(0644)
f, err := os.OpenFile(of, os.O_CREATE|os.O_WRONLY|os.O_TRUNC, mode)
if err != nil {
log.Println("Cannot open new test summary file:", of, "\n", err)
return
}
h := strings.Replace(header, "Test Report", "Test Report Summary", 1)
if _, err := fmt.Fprint(f, h); err != nil {
log.Println("Error writing header to file", f.Name(), "\n", err)
}
if _, err := fmt.Fprint(f, `
<table>
<thead>
<tr>
<th>Test Suite</th>
<th>Tests Passed</th>
<th>Tests Pending</th>
<th>Tests Failed</th>
<th>Total Time</th>
</tr>
</thead>
<tbody>
`); err != nil {
log.Println("Error writing table header to file", f.Name(), "\n", err)
}
var tpa, tpe, tfa int
var te time.Duration
for s := range r.tests {
if _, err := fmt.Fprintf(f, "<tr>\n<td>%v</td>\n", s); err != nil {
log.Println("Error writing test name to file", f.Name(), "\n", err)
}
tpa += r.tests[s].passed
if _, err := fmt.Fprintf(f, "<td>%d</td>\n", r.tests[s].passed); err != nil {
log.Println("Error writing tests passed to file", f.Name(), "\n", err)
}
tpe += r.tests[s].pending
if _, err := fmt.Fprintf(f, "<td>%d</td>\n", r.tests[s].pending); err != nil {
log.Println("Error writing tests pending to file", f.Name(), "\n", err)
}
tfa += r.tests[s].failed
if _, err := fmt.Fprintf(f, "<td>%d</td>\n", r.tests[s].failed); err != nil {
log.Println("Error writing tests failed to file", f.Name(), "\n", err)
}
te += r.tests[s].totalExecutionTime
if _, err := fmt.Fprintf(f, "<td>%d (ms)</td>\n</tr>\n", r.tests[s].totalExecutionTime/time.Millisecond); err != nil {
log.Println("Error writing test execution time to file", f.Name(), "\n", err)
}
}
if _, err := fmt.Fprint(f, "<tr>\n<td><strong>Total</strong></td>\n"); err != nil {
log.Println("Error writing test summary column to file", f.Name(), "\n", err)
}
if _, err := fmt.Fprintf(f, "<td><strong>%d</strong></td>\n", tpa); err != nil {
log.Println("Error writing total passed column to file", f.Name(), "\n", err)
}
if _, err := fmt.Fprintf(f, "<td><strong>%d</strong></td>\n", tpe); err != nil {
log.Println("Error writing total pending column to file", f.Name(), "\n", err)
}
if _, err := fmt.Fprintf(f, "<td><strong>%d</strong></td>\n", tfa); err != nil {
log.Println("Error writing total failed column to file", f.Name(), "\n", err)
}
if _, err := fmt.Fprintf(f, "<td><strong>%d (ms)</strong></td>\n</tr>\n", te/time.Millisecond); err != nil {
log.Println("Error writing total time column to file", f.Name(), "\n", err)
}
if _, err := fmt.Fprint(f, `
</tbody>
</table>
</body>
</html>
`); err != nil {
log.Println("Error closing summary file", f.Name(), "\n", err)
}
}
func (r *HtmlReporter) saveIndex() {
dir := filepath.Dir(r.file.Name())
of := fmt.Sprintf("%v/index.html", dir)
mode := os.FileMode(0644)
f, err := os.OpenFile(of, os.O_CREATE|os.O_WRONLY|os.O_TRUNC, mode)
if err != nil {
log.Println("Cannot open new test index file:", of, "\n", err)
return
}
if _, err := fmt.Fprintf(f, `
<h2>Test Results</h2>
<div><a href='%v'>Aggregate Results</a></div>
<div><a href='summary.html'>Test Summary</a></div>
<div>Links to individual test results below...</div>
`, filepath.Base(r.file.Name())); err != nil {
log.Println("Error writing results and summary links to file", f.Name(), "\n", err)
}
if _, err := fmt.Fprintf(f, "%v\n<ol>\n", header); err != nil {
log.Println("Error writing ol tag to file", f.Name(), "\n", err)
}
for s := range r.tests {
p := "<span style='color: green'>✓</span>"
if r.tests[s].failed > 0 {
p = "<span style='color: red'>✗</span>"
} else if r.tests[s].pending > 0 {
p = "<span style='color: cyan'>-</span>"
}
if _, err := fmt.Fprintf(f, "<li>%v <a href='%v.html'>%v</a></li>\n", p, s, s); err != nil {
log.Println("Error writing text link to file", f.Name(), "\n", err)
}
}
if _, err := fmt.Fprint(f, "</ol>\n</body>\n</html>\n"); err != nil {
log.Println("Error writing closing tags to file", f.Name(), "\n", err)
}
}
var (
outfile = flag.String("report.file", "test-results/results.html", "Sets the aggregate html report output file")
saveoutput = flag.Bool("report.preserve", false, "Preserve html report output files in a date-time based directory structure")
reporter *HtmlReporter
ronce sync.Once
)
const header = `<!DOCTYPE html>
<html lang="en">
<head>
<title>Test Report</title>
<style>
b, p, div, span, a
{
font-family: -apple-system, BlinkMacSystemFont, georgia, serif;
font-size: small;
}
h1, h2, h3
{
font-family: -apple-system, BlinkMacSystemFont, georgia, serif;
}
hr
{
color: #ff9900;
}
a:link, a:visited
{
font-family: -apple-system, BlinkMacSystemFont, georgia, serif;
text-decoration: none;
cursor: auto;
}
table
{
border: 1px solid #1C6EA4;
background-color: #EEEEEE;
width: 100%;
text-align: left;
border-collapse: collapse;
}
table td, table th
{
border: 1px solid #AAAAAA;
font-family: -apple-system, BlinkMacSystemFont, georgia, serif;
padding: 3px 2px;
}
table tbody td
{
font-family: -apple-system, BlinkMacSystemFont, georgia, serif;
font-size: 13px;
}
table tr:nth-child(even)
{
background: #D0E4F5;
}
table thead
{
background: #1C6EA4;
background: -moz-linear-gradient(top, #5592bb 0%, #327cad 66%, #1C6EA4 100%);
background: -webkit-linear-gradient(top, #5592bb 0%, #327cad 66%, #1C6EA4 100%);
background: linear-gradient(to bottom, #5592bb 0%, #327cad 66%, #1C6EA4 100%);
border-bottom: 2px solid #444444;
}
table thead th
{
font-size: 15px;
font-weight: bold;
color: #FFFFFF;
border-left: 2px solid #D0E4F5;
}
table thead th:first-child
{
border-left: none;
}
table tfoot
{
font-size: 14px;
font-weight: bold;
color: #FFFFFF;
background: #D0E4F5;
background: -moz-linear-gradient(top, #dcebf7 0%, #d4e6f6 66%, #D0E4F5 100%);
background: -webkit-linear-gradient(top, #dcebf7 0%, #d4e6f6 66%, #D0E4F5 100%);
background: linear-gradient(to bottom, #dcebf7 0%, #d4e6f6 66%, #D0E4F5 100%);
border-top: 2px solid #444444;
}
table tfoot td
{
font-size: 14px;
}
table tfoot .links
{
text-align: right;
}
table tfoot .links a
{
display: inline-block;
background: #1C6EA4;
color: #FFFFFF;
padding: 2px 8px;
border-radius: 5px;
}
ol
{
list-style: none;
counter-reset: item;
}
li
{
counter-increment: item;
margin-bottom: 5px;
}
li:before
{
margin-right: 10px;
content: counter(item);
background: lightblue;
border-radius: 100%;
color: white;
width: 1.2em;
text-align: center;
display: inline-block;
}
</style>
</head>
<body>
`
Last modified: 18 February 2025
